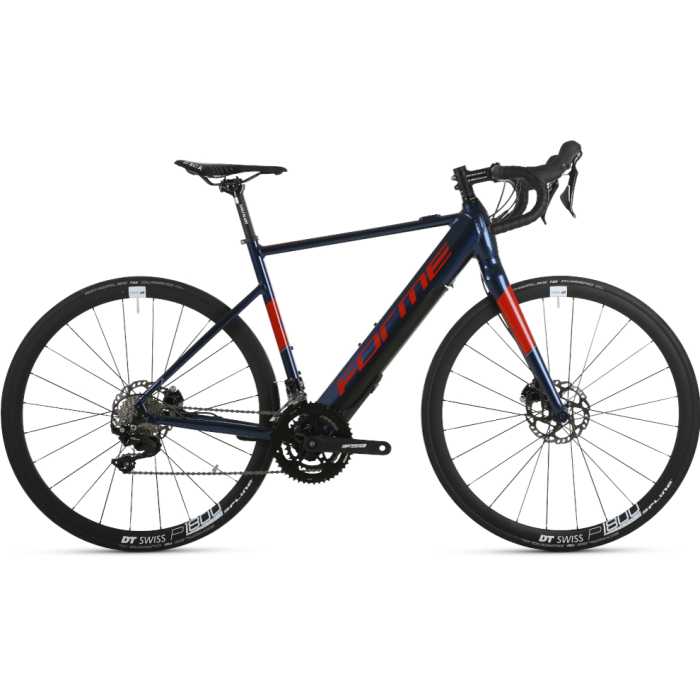

Forme Monyash 700c Electric Road Bike
Features:
- Frame Size: XS: 44cm, S: 48, M: 52cm, L: 55cm
- Frame: 6061 Alloy with In Tube Battery
- Fork: Full Carbon Tapered Steerer
- Shifters: Shimano 105, 22 Speed
- Rear Derailleurs: Shimano 105, 11 Speed
- Chainset: FSA 34/50T
- Cassette: Shimano 105, 11-32T
- Chain: KMC Z11
- Bottom Bracket: FSA ISIS
- Motor: Fazua Drive Pack Evation 1.0
- Display: Fazua In Tube
- Brakes: Shimano 105, 160mm Rotors
- Handlebars: Ritchey Comp Curve 400mm
- Headset: FSA Integrated Cage Bearing
- Grips: Light Weight Comfort Tape
- Stem: Richey Comp 400mm
- Saddle: Fizik Antares
- Seatpost: Signum Alloy 30.9mm
- Pedals: Platform Black Alloy
- Wheelset: DT Swiss P1800, 700c
- Tyres: Schwalbe One 700 x 28c
- Battery: Fazua Integrated, 250wh

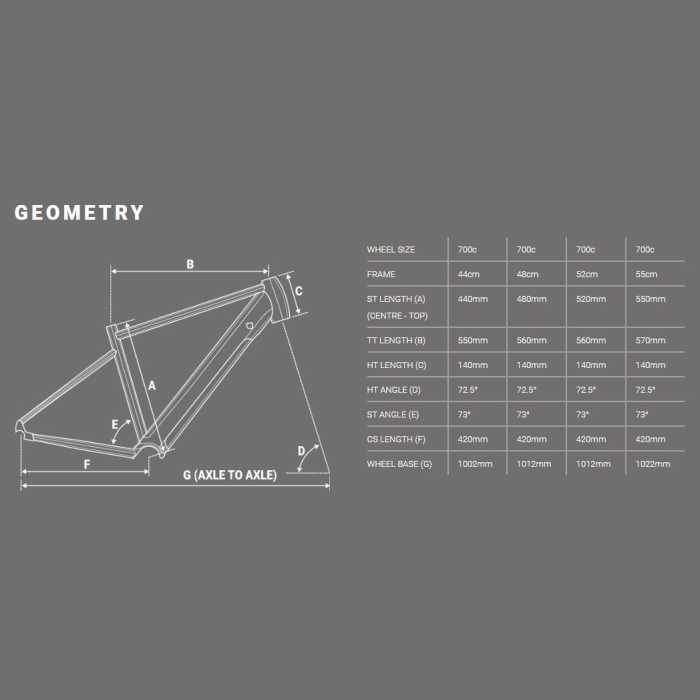

Geometry:
- See Images
Built to last in all conditions, all year round, the Monyash E-Road is constructed with a robust and responsive aluminium frameset and the lightest complete drive system on the market to provide assistance when required. Designed to be ridden with or without battery assistance on road or on none-technical off road trails, the Monyash E-road is your answer to a faster commute or outdoor adventure.
The Fazua Evation system is one of the quietest, lightest and most compact systems on the market. The combined weight of motor, battery and gearbox is only 4.6kg distributed across the lower, central area of the bike with perfect integration into the frame.
The 4 power levels offer up to 400W of assistance, combined with 2 chain rings for a wider gear range, giving you the turbo boost you are looking for on the climbs. Once over the top of the climb and on the descent or sprinting accelerating over 15mph the drive unit and freewheel disengage seamlessly maintaining the comfort, steering and confidence expected from a carbon, endurance road bike.
The handling is further supported with a lower centre of gravity, optimal frame stack and reach, clearance for tyres up to 30mm and 12mm thru axles front and rear for fast responsivity.
