Blunt AOSV5LTD Signature Custom Stunt Scooter - Raymond Warner 4.75"

Blunt Envy AOSV5LTD Signature Custom Stunt Scooter - Raymond Warner

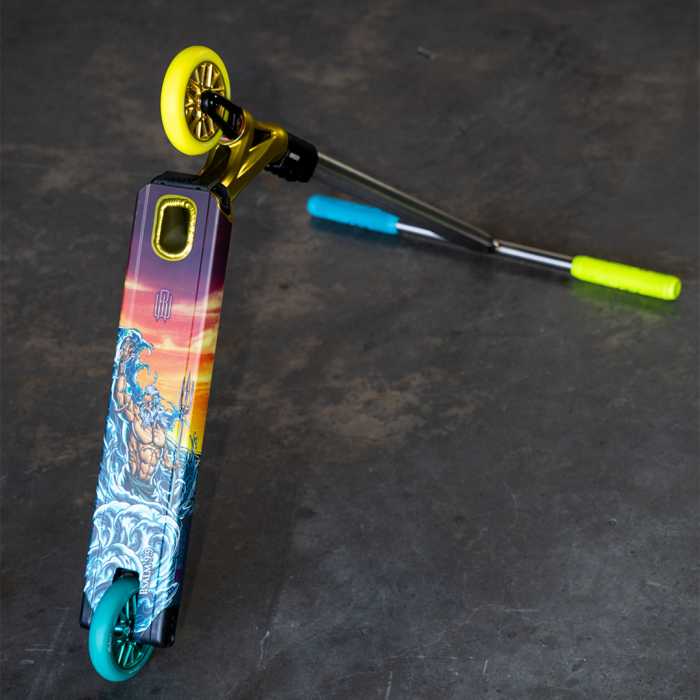

Custom complete stunt scooter built from the ground up featuring a range of quality Blunt Envy aftermarket parts just like their pro rider Raymond Warner rides, including his own AOSV5LTD signature deck model.



This custom scooter comes fully assembled by the experienced SkateHut expert build team and is ready to shred right out of the box.



Total Scooter Height: 1050mm (41.33")

Scooter Weight: 4020g (4.02kg)

Compression Type: SCS

Bar Height: 720mm (28.3")

Bar Width: 620mm (24.4")

Bar Inner Diameter: 32mm (Oversized Diameter)

Bar Outer Diameter: 35mm (Oversized Diameter)

Bar Material: Chromoly Steel

Deck Length: 520mm (20.5")

Deck Width: 120mm (4.75")

Headtube Angle: 83°

Deck Concave: Unspecified

Deck Material: Highest Grade 6061 T6 Aluminium

Clamp Type: SCS Quad Clamp

Clamp Material: CNC Aircraft Grade Aluminium

Headset Type: Integrated

Fork Type: Threadless SCS

Fork Material: High Quality CNC 6063 Aluminium

Wheel Diameter: 120mm

Wheel Width: 24mm (axle), 26mm (PU)

Wheel Durometer (Hardness): 86A

Core Material: Aluminium

Core Design: Spoked

Bearing Precision: ABEC 9

Axle Diameter: 8mm

Brake Tape: Flex Fender Brake



Handlebars: Blunt Envy Thermal V2 SCS Scooter Handle Bars - Silver 720mm

Clamp: Blunt Envy Omen 4 Bolt SCS Clamp - Black

Deck: Blunt Envy AOS V5 Ltd Scooter Deck - Warner 4.75"

Forks: Blunt Envy Declare V2 SCS Scooter Forks - Black

Grip Tape: Vital Logo Scooter Grip Tape - Teal

Handlebar Grips: Vital Scooter Grips - 1x Team, 1x Yellow

Headset: Blunt Envy Integrated Scooter Headset - Black

Wheels: Blunt Envy Delux 120mm Scooter Wheel - 1x Team, 1x Yellow

Bearings: Blunt Envy ABEC 9 Bearings
