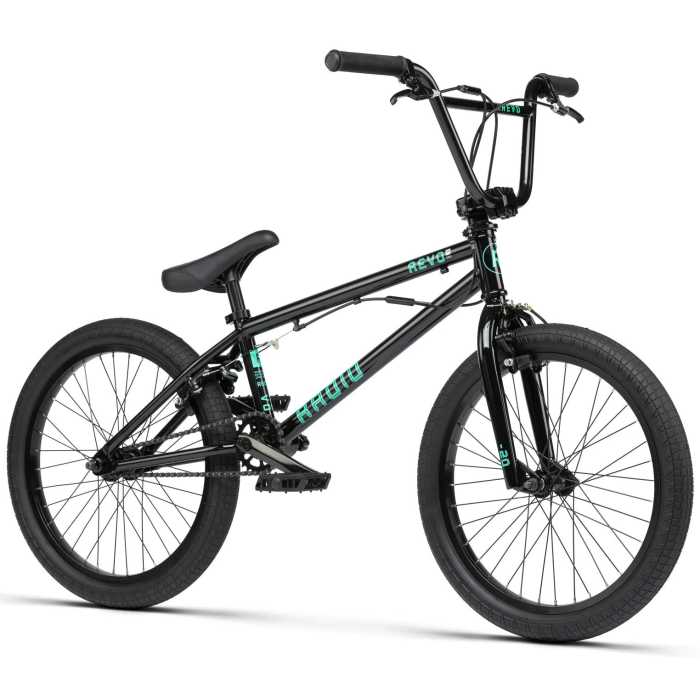

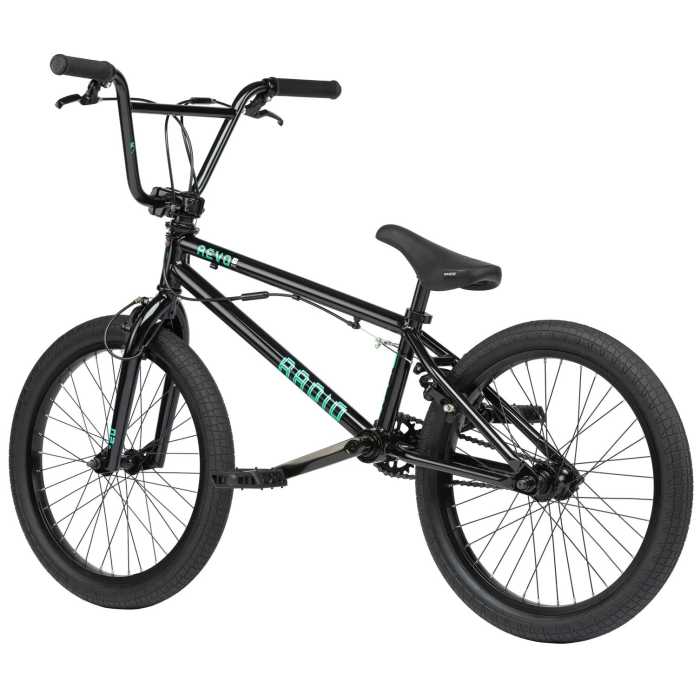

Radio Revo Pro FS 20'' Complete BMX
Features:
- Full Size 20" Complete BMX
- Frame: RADIO “REVO PRO FS 20” frame, full 1020 hi-ten
- Fork: RADIO “AM 20” fork, 1020 hi-ten, crmo steerer, welded pivots
- Handlebar: RADIO “REVO PRO FS 20” bar, hi-ten
- Grips: RADIO “AM” grips, flangeless, 150mm
- Stem: SALT “AM” frontload stem, 48mm reach
- Headset: FSA “a-head-set” loose ball
- Gyro: SALT “AM” rotor with SALT “AM” rotor cables
- Brake Lever: RADIO “AM” alloy brake lever
- Brake: RADIO “AM” alloy u-brake rear
- Crank: RADIO “ROOKIE” 3pc crank, forged, crmo, 170mm
- BB: USA size, loose ball
- Pedals: RADIO “Rookie” Nylon Pedals
- Chain: KMC “S1” chain
- Sprocket: RADIO “ROOKIE” sprocket, steel, 25t
- Driver: 9T, cassette
- Front Hub: RADIO “ROOKIE” hub, steel, lb, 3/8″s, 36h
- Rear Hub: RADIO “ROOKIE” cassette hub, steel, lb, 9t, 14mm axle, 36h
- Front Rim: SALT “AM” rim, straight single wall, 36h
- Rear Rim: SALT “AM” rim, straight single wall, 36h
- Seat: RADIO “Century” slim combo seat
- Seat Post: -
- Seat Clamp: RADIO slim alloy seat clamp
- Tyres: RADIO “ROOKIE” tires, 20" x 2.2", front & rear
- Weight: 13.04kg (28.74lbs)
Frame Geometry:
- TOP TUBE LENGTH 20"
- CHAIN STAY LENGTH 13"
- HEAD TUBE ANGLE 75°
- SEAT TUBE ANGLE 71.5°
- BOTTOM BRACKET HEIGHT 11.75"
- STANDOVER HEIGHT 7.8"
Handlebar Geometry:
- RISE 8.75"
- WIDTH 29"
- BACKSWEEP 11°
- UPSWEEP 2°
The Revo line allows you to get your first taste of the bmx world on a solid and well-designed bike. We took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. despite the low price-point, the revo is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.
The Revo 20" Pro allows you to get your first taste of the bmx world on a solid and well-designed bike. building on the Revo 20", the Revo Pro adds a 3pc crank upgrade making this machine even more dialled than ever before.
Important Note: Our bikes require some assembly on delivery. See our Warranty Page for more details.
