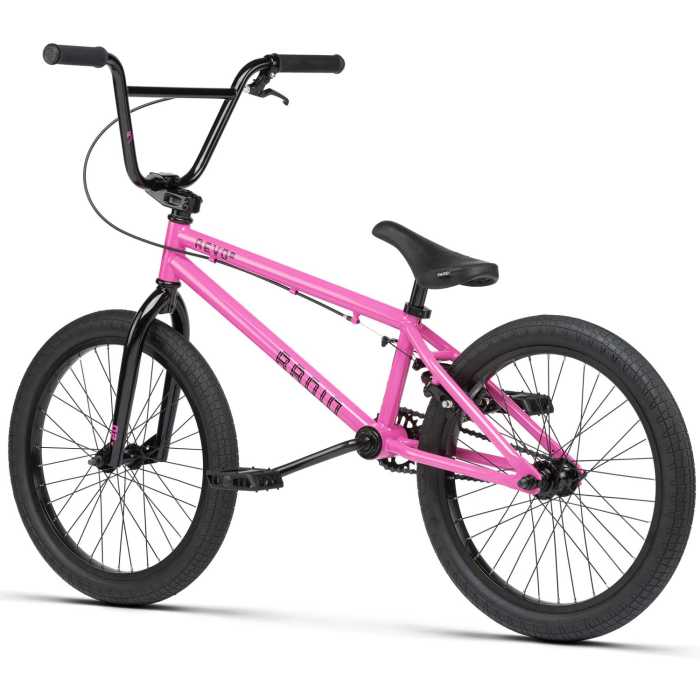

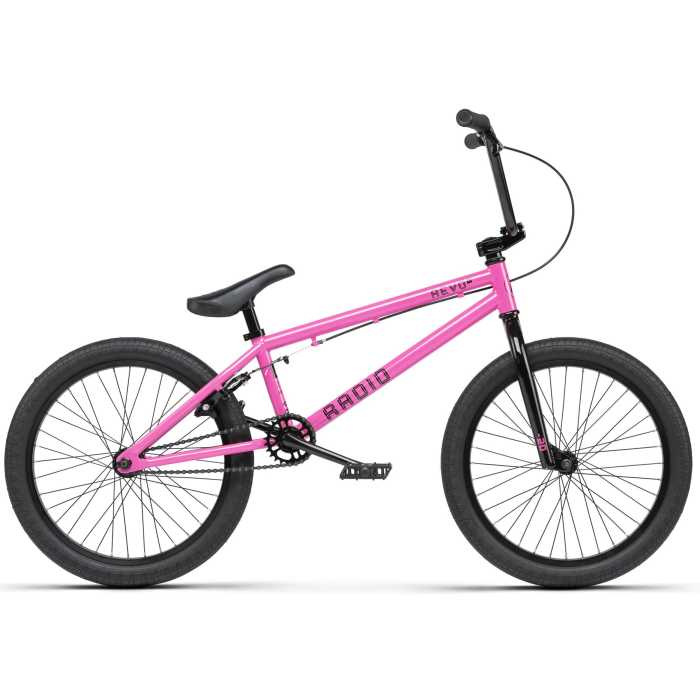

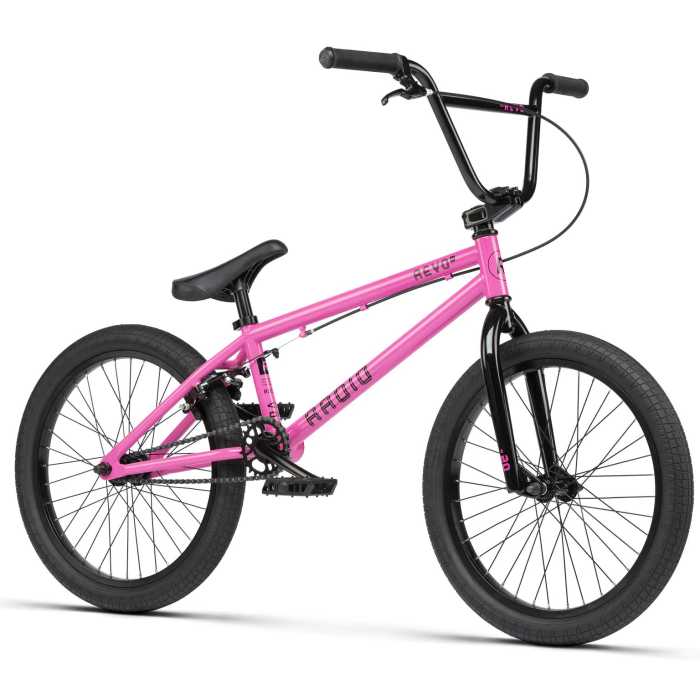

Radio Revo 20'' Complete BMX
Features:
- Full Size 20" Complete BMX
- Frame: RADIO “REVO 20” frame, full 1020 hi-ten
- Fork: RADIO “AM 20” fork, 1020 hi-ten, crmo steerer
- Handlebar: RADIO “REVO 20” bar, hi-ten
- Grips: RADIO “AM” grips, flangeless, 150mm
- Stem: SALT “AM” topload stem, 50mm reach
- Headset: FSA “a-head-set” loose ball
- Gyro: –
- Brake Lever: RADIO “AM” alloy brake lever
- Brake: RADIO “AM” alloy u-brake rear
- Crank: RADIO “Rookie” OPC forged crank CrMo 170mm
- BB: USA size, loose ball
- Pedals: RADIO “Rookie” Nylon Pedals
- Chain: KMC “S1” chain
- Sprocket: RADIO “ROOKIE” sprocket, steel, 25t
- Driver: 9T, cassette
- Front Hub: RADIO “ROOKIE” hub, steel, lb, 3/8″s, 36h
- Rear Hub: RADIO “ROOKIE” cassette hub, steel, lb, 9t, 14mm axle, 36h
- Front Rim: SALT “AM” rim, straight single wall, 36h
- Rear Rim: SALT “AM” rim, straight single wall, 36h
- Seat: RADIO “Century” slim combo seat
- Seat Post: -
- Seat Clamp: RADIO slim alloy seat clamp
- Tyres: RADIO “ROOKIE” tires, 20" x 2.2", front & rear
- Weight: 12.22kg (26.94lbs)
Frame Geometry:
- TOP TUBE LENGTH 20"
- CHAIN STAY LENGTH 13"
- HEAD TUBE ANGLE 75°
- SEAT TUBE ANGLE 71.5°
- BOTTOM BRACKET HEIGHT 11.75"
- STANDOVER HEIGHT 7.8"
Handlebar Geometry:
- RISE 8.75"
- WIDTH 29"
- BACKSWEEP 11°
- UPSWEEP 2°
The Revo 20" allows you to get your first taste of the bmx world on a solid and well-designed bike. we took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. despite the low price-point, the revo is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.
Important Note: Our bikes require some assembly on delivery. See our Warranty Page for more details.
