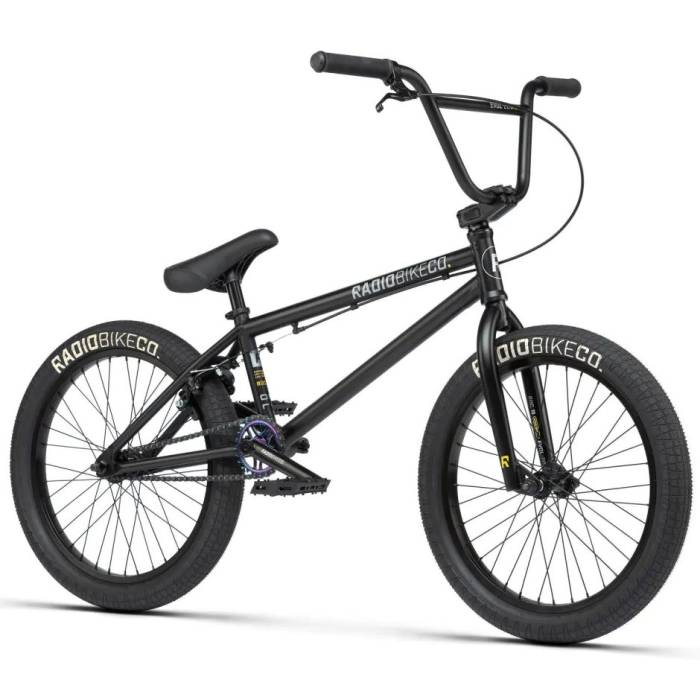

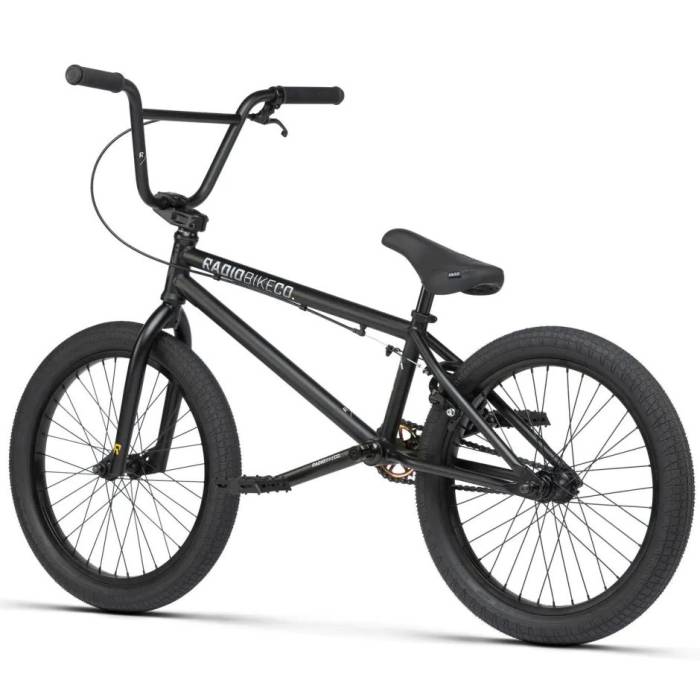

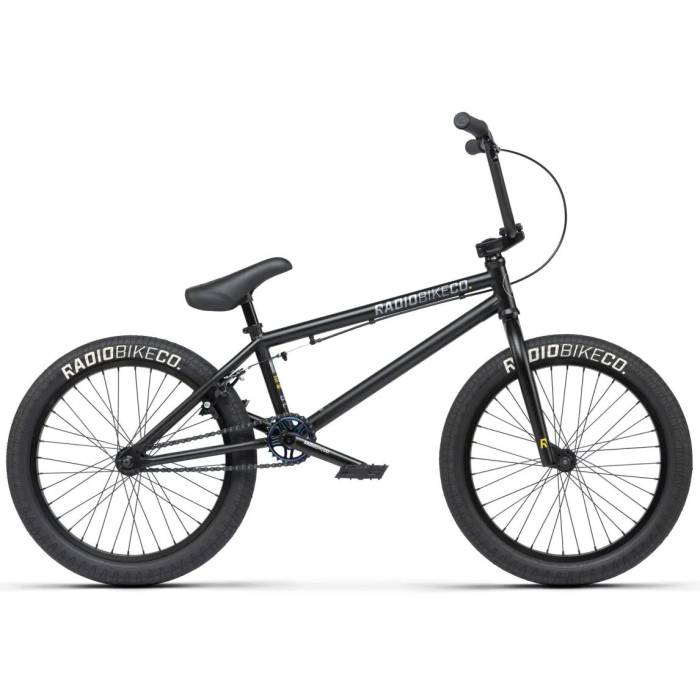

Radio Evol 20'' Complete BMX
Features
- Full Size 20" Complete BMX
- Frame: Radio “EVOL” frame, crmo top tube, 1020 hi-ten
- Fork: Radio “AM” fork, 1020 hi-ten, crmo steerer, tapered legs

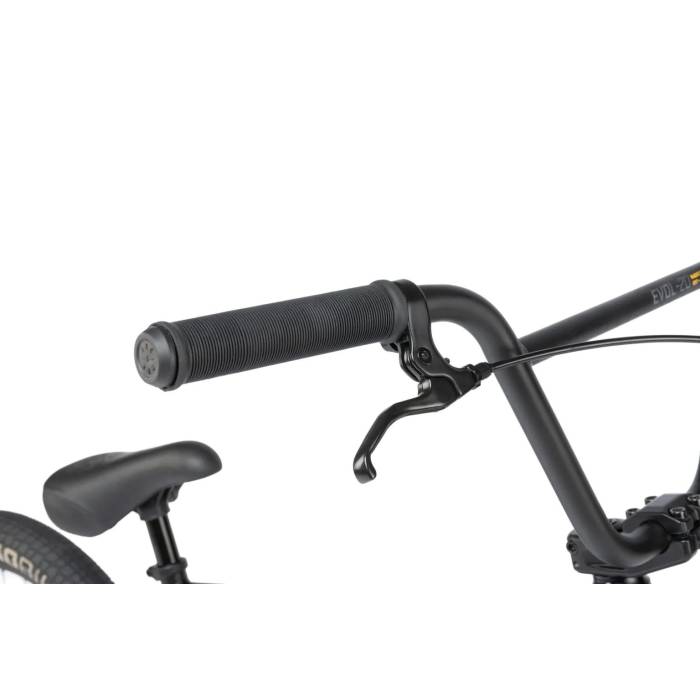

- Handlebar: Radio “AM 20” bar, 1020 hi-ten
- Grips: Salt “EX” grips, flangless, 155mm

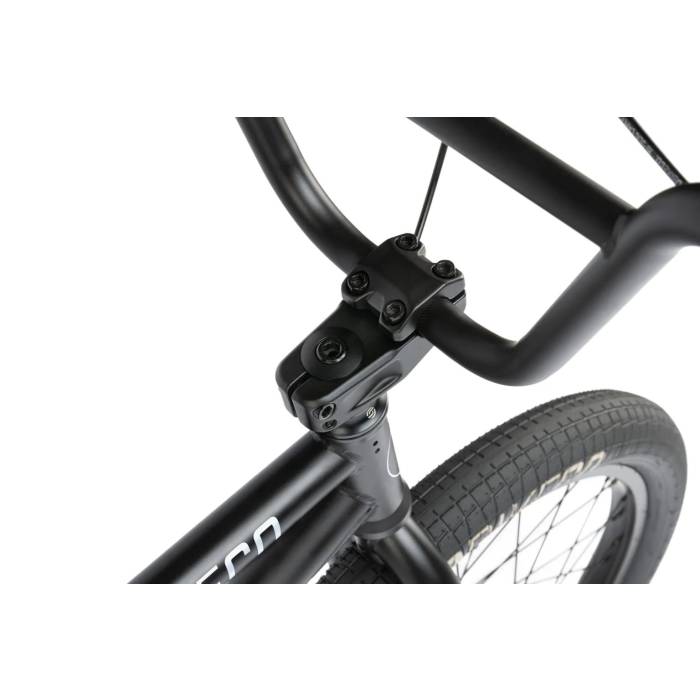

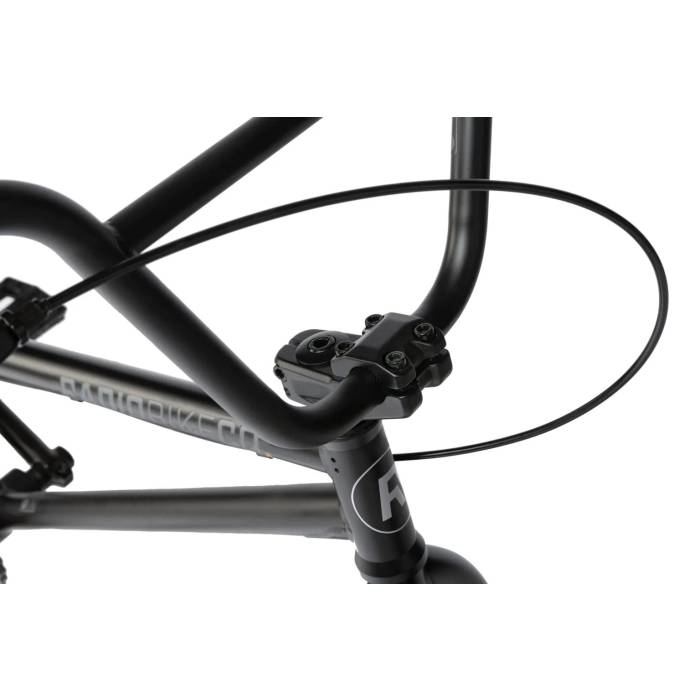

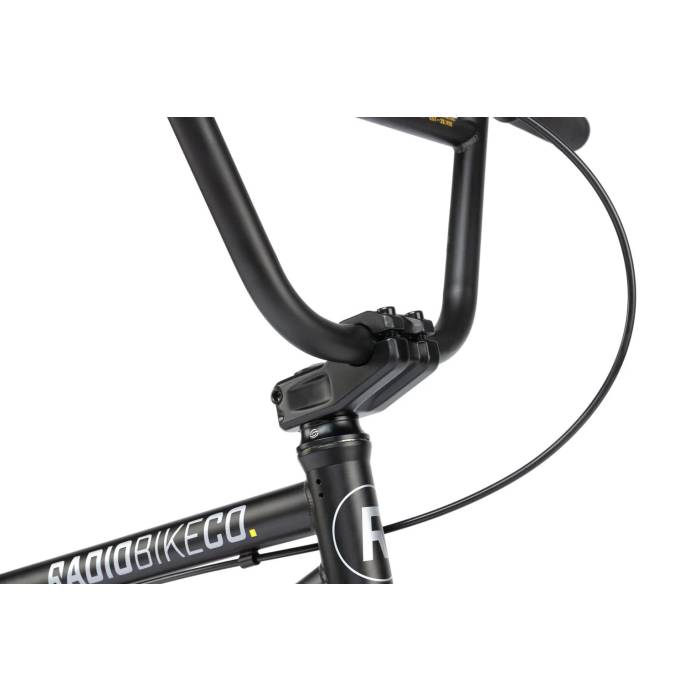

- Stem: Radio “AM” topload stem, 50mm reach
- Headset: Salt “PRO” integ. headset, sealed ball
- Gyro: holes for removable tabs
- Brake Lever: Radio “AM” alloy brake lever
- Brake: Radio “AM” alloy u-brake rear

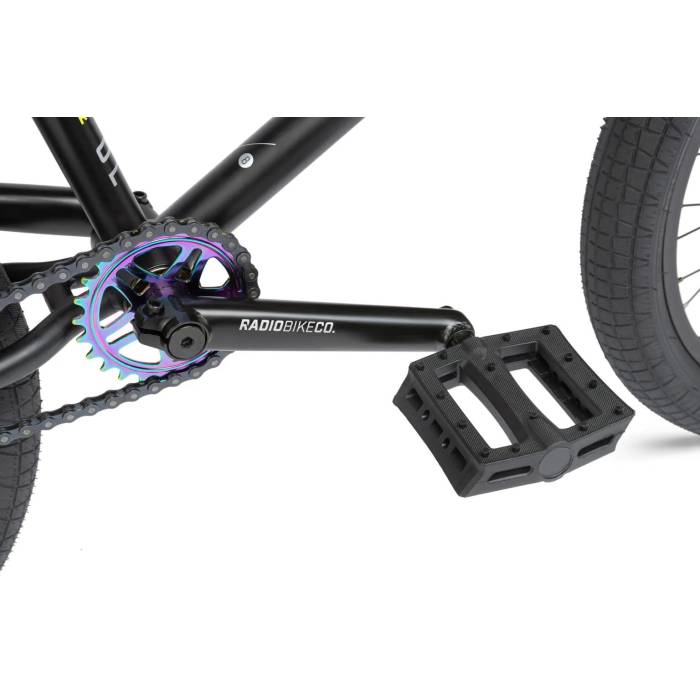

- Crank: Radio “ROOKIE” tubular 3pc crank crmo, 165mm, 8 spline
- BB: Mid size, press fit, sealed bearing

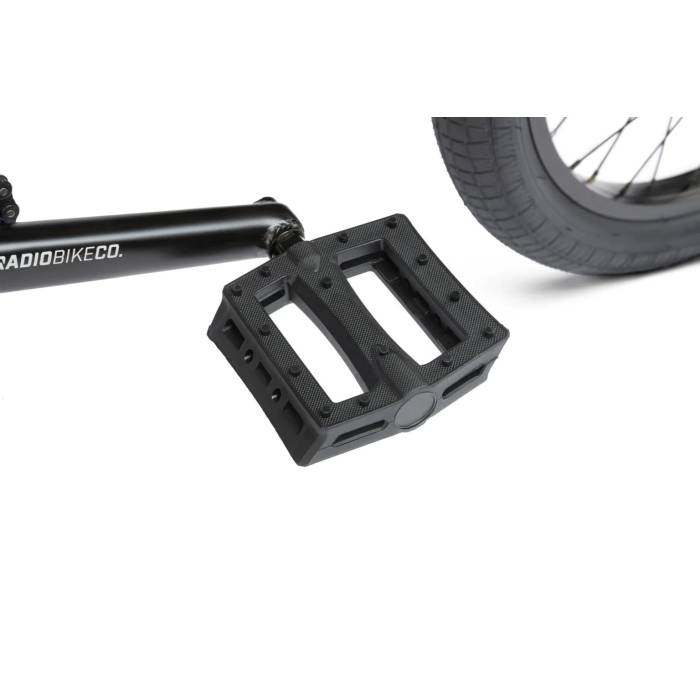

- Pedals: Radio “PRO” Nylon Fibreglass Pedals
- Chain: Salt “AM” chain, WZ1 type
- Sprocket: Radio “VISION” steel 25t sprocket
- Driver: 9T cassette driver, loose ball

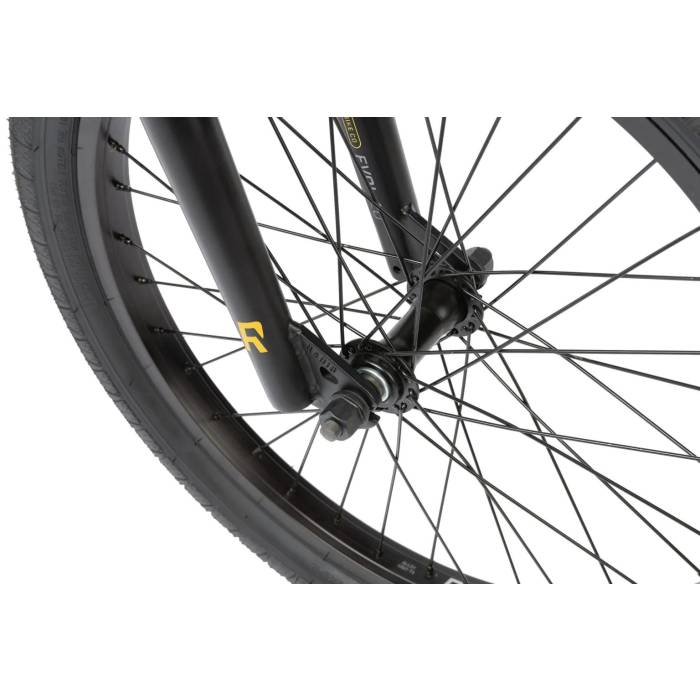

- Front Hub: Radio “Rookie” steel hub, lb, 3/8″s, 36h

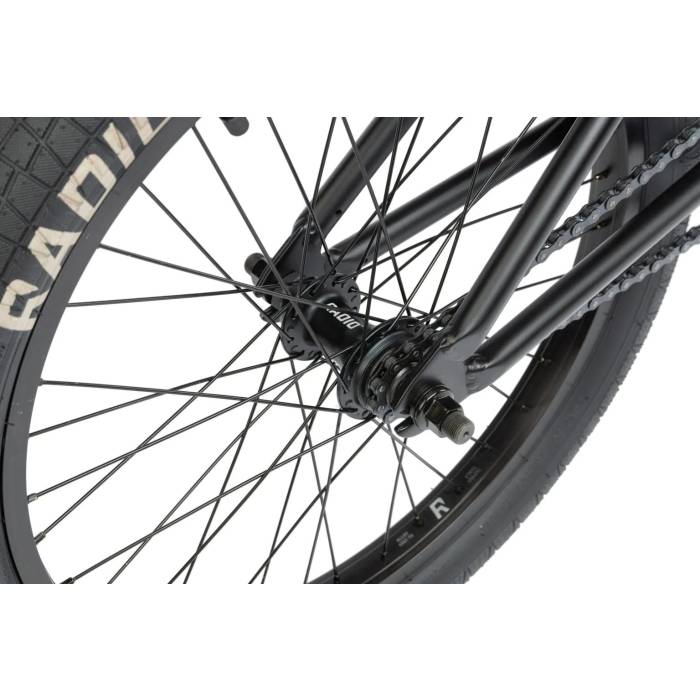

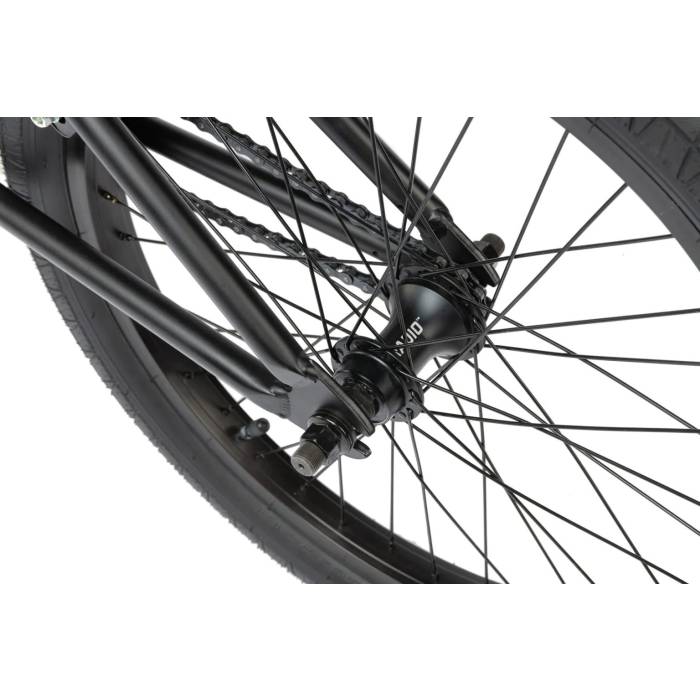

- Rear Hub: Radio “AM” cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
- Front Rim: Radio “ROOKIE” rim, single wall, 36h
- Rear Rim: Radio “ROOKIE” rim, single wall, 36h

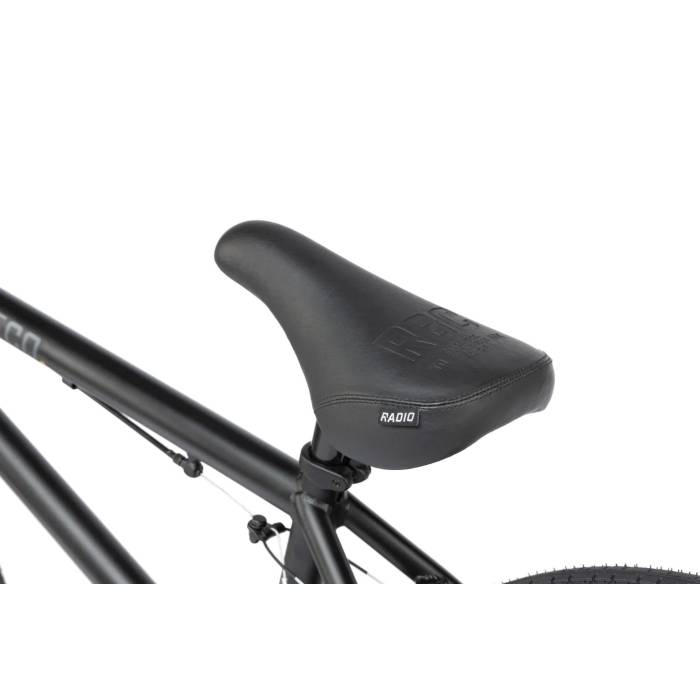

- Seat: Radio “CENTURY” mid padded combo seat
- Seat Clamp: Radio “SLIM” alloy seat clamp

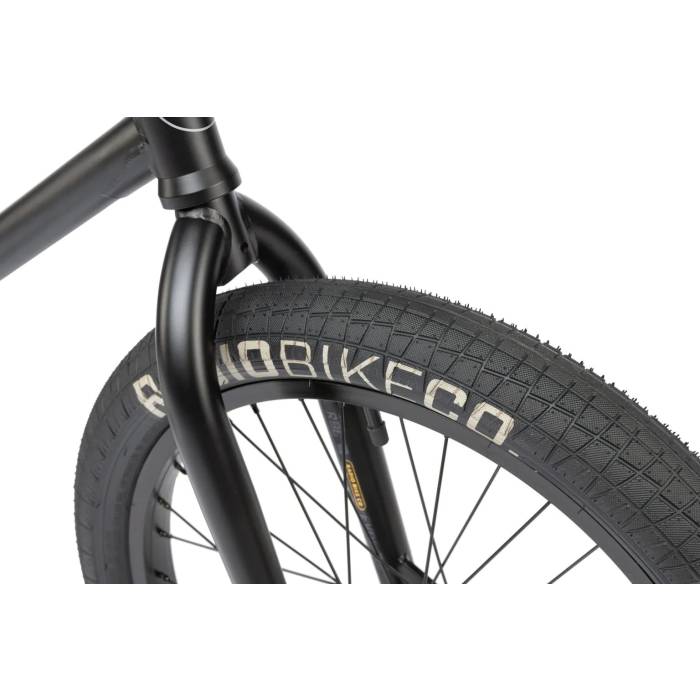

- Tires: Radio “ROOKIE” tires, 2.3″ front & rear
- Weight: 12.25kg / 27.02lbs
Frame Geometry
- Top Tube Length: 20.3″
- Chain Stay Length: 13.2″
- Head Tube Angle: 75°
- Seat Tube Angle: 71.5°
- Bottom Bracket Height: 11.75″
- Standover Height: 8.25″
Handlebar Geometry
- Rise: 8.8"
- Width: 29"
- Backsweep: 11°
- Upsweep: 2°
The EVOL enters 2021 with a fresh injection of new parts and flavour a solid entry level machine with everything you need to start making serious progression with your riding. Boasting a CRMO toptube and a sealed integrated headset and mid-sized bottom bracket, details like the big logo Radio Rookie tires and oil slick sprocket make the EVOL something very special and unique.
Important Note: Our bikes require some assembly on delivery. See our Warranty Page for more details.
