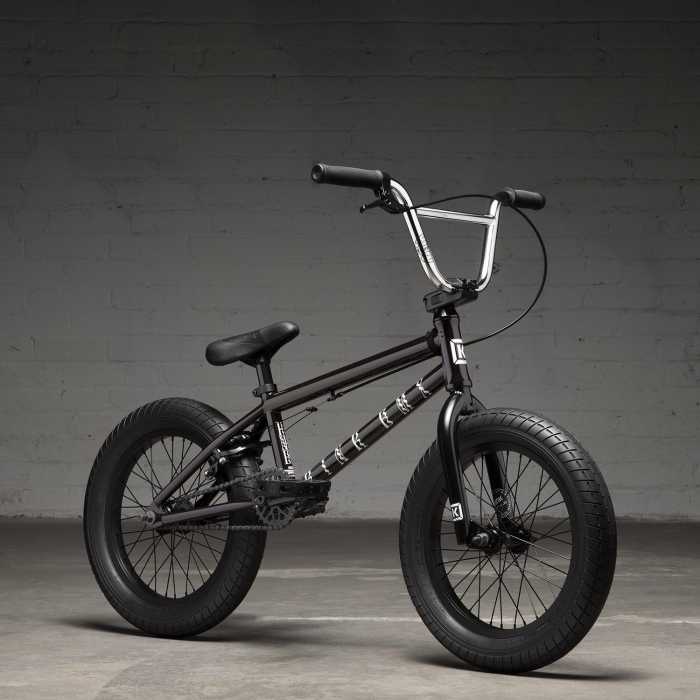

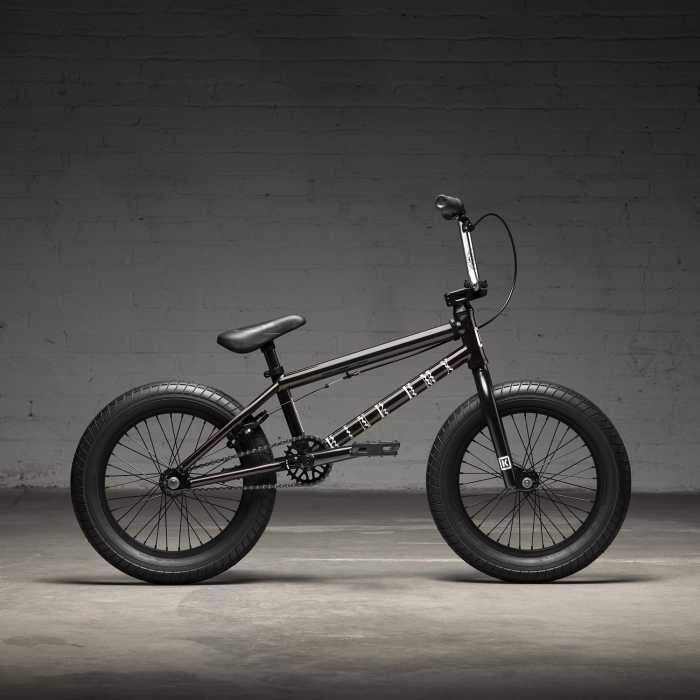

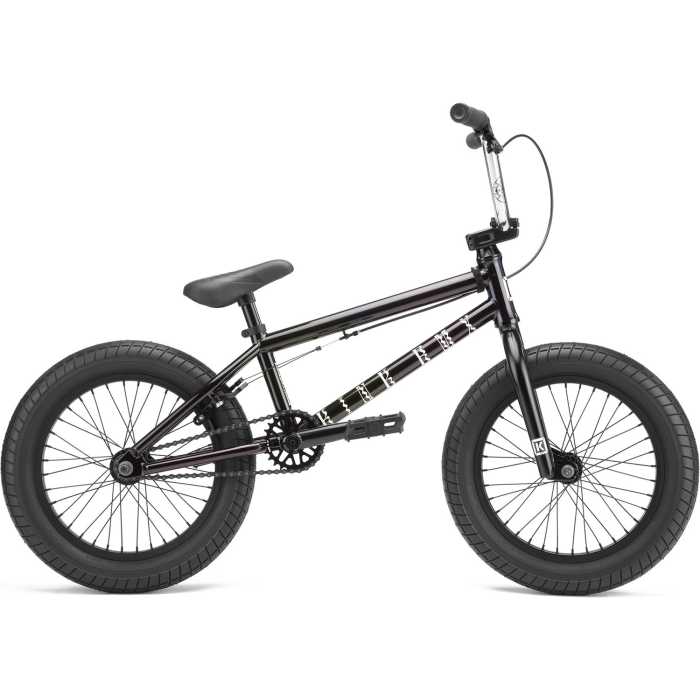

Kink Carve 16'' 2022 Complete BMX - Gloss Iridescent Black

Features

• Frame: Kink Carve 100% Hi-Ten Steel
• Fork: Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs
• Bars: Kink T700 7” 100% Hi-Ten Steel

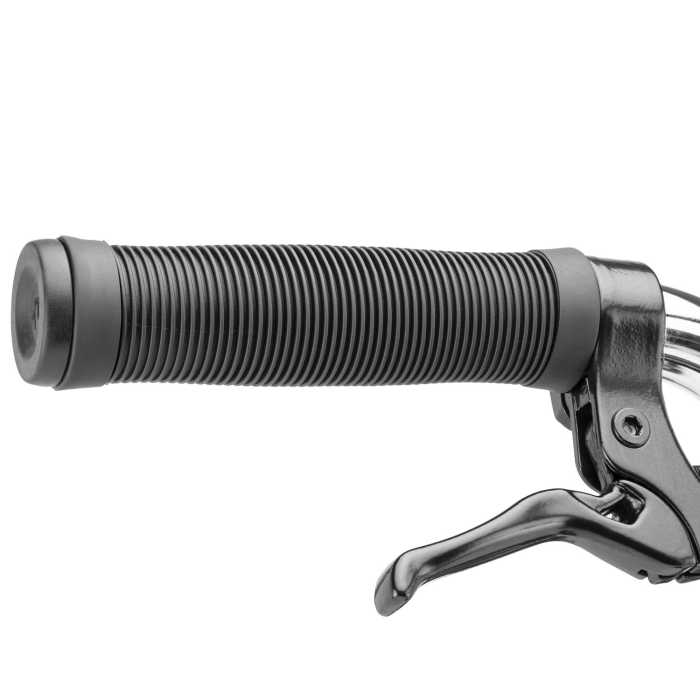

• Grips: Mission Helix Mini

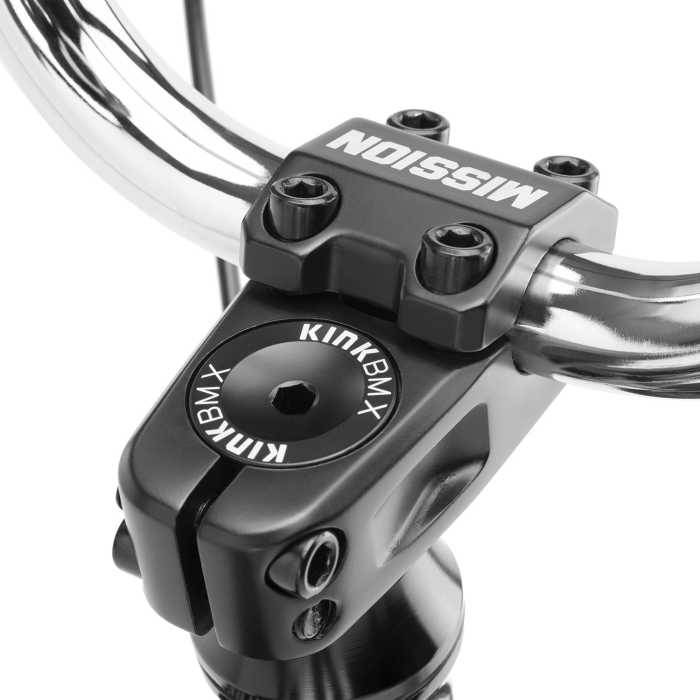

• Stem: Mission Topload 40mm
• Headset: Mission Sealed Integrated (41.8 X 45)
• Brake Lever: Mission Mini
• Brake Cable: Mission L1 Linear
• Brakes: Mission Cease V2

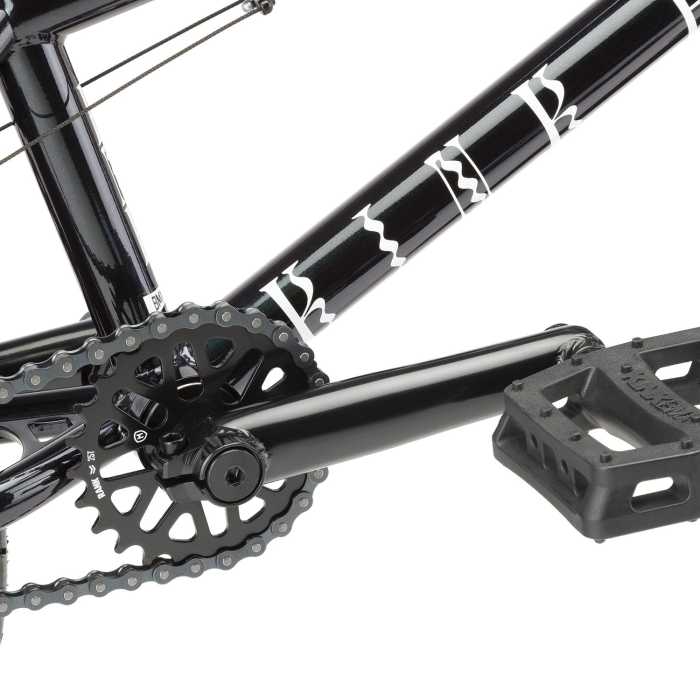

• Cranks: Mission Triumph 3pc Tubular Chromoly 140mm – 8 Spline
• Bottom Bracket: Sealed Mid 19mm
• Pegs:  N/A
• Pedals: Kink Hemlock
• Chain: Mission 410
• Sprocket: Mission Rank 25t

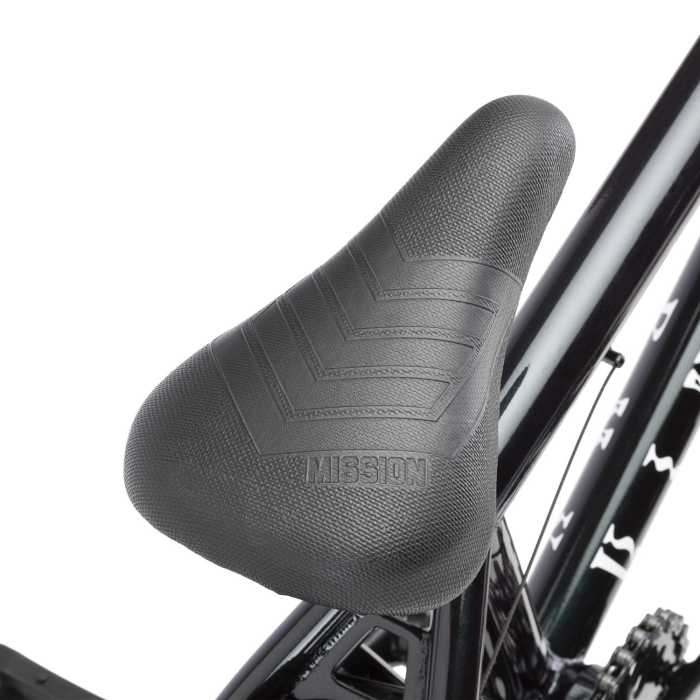

• Seat: Mission Cypress Mini Combo
• Seat Post: Mission Combo Steel Post
• Seat Clamp: Mission Slim Clamp
• Front Hub: Mission Covert Unsealed 3/8″ Axle
• Rear Hub: Mission Function Semi-Sealed Cassette 14mm
• Driver: 9t
• Rims: Mission X7

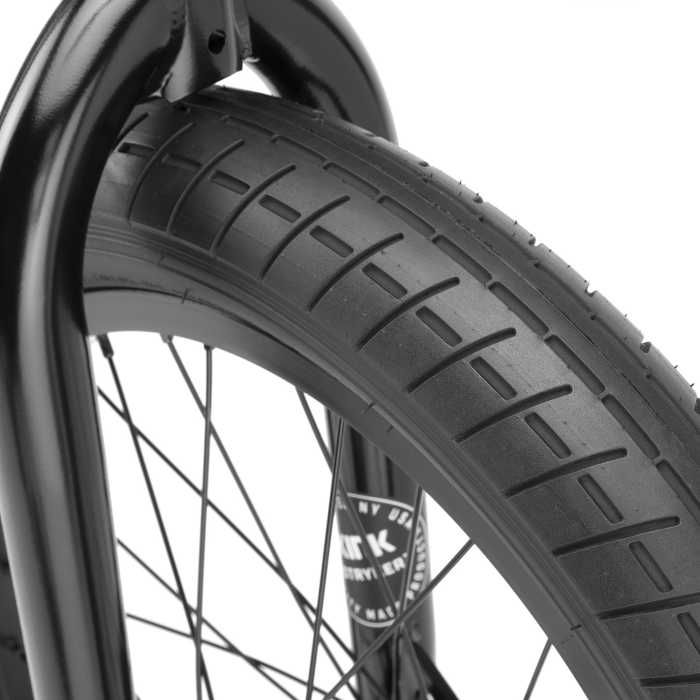

• Tires: Mission Tracker 16x2.4"
• Weight: 22lb 9oz / 10.2kg

Geometry

• Toptube Length: 16.5"
• Chainstay Length: 11.25"
• Headtube Angle: 74.5°
• Seattube Angle: 71°
• Standover Height: 6.75"
• Bottom Bracket Height: 9.75"
• Fork Offset: 32mm

The Kink Carve 16” bike is the younger sibling of the Kicker 18”, and it ensures every age and every height rider can find a perfect fitting Kink bike. Kids are getting into BMX younger and younger, and we love it. The 2022 Carve comes in a great Gloss Iridescent Black color, which is complimented by black components throughout and chrome handlebars.

Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet. Still stacked with great parts, the 2022 Carve comes with 7” Kink T700 bars, a short reach 40mm Mission topload stem, rock solid 3-piece tubular chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset, and modern tread design 2.4” tires.

Note: See Images For Detailed Size Guide
