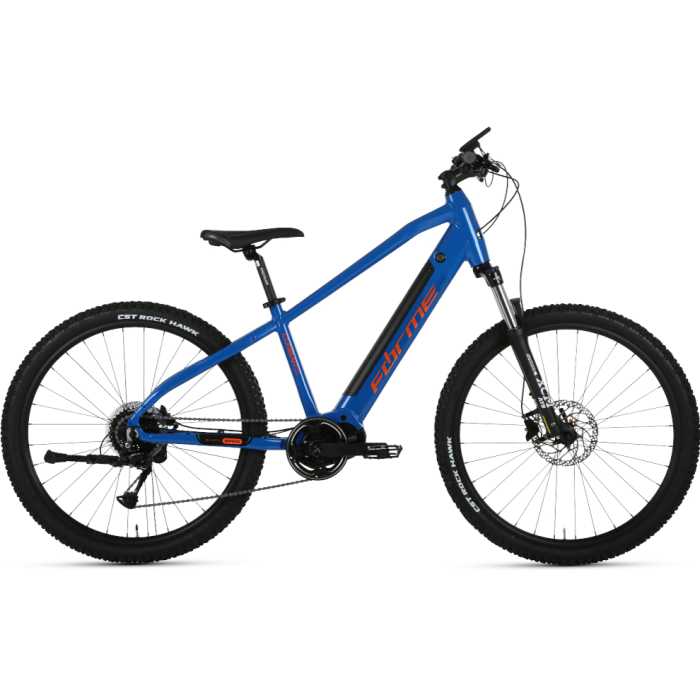

Forme Curbar HTE Pro 27.5'' Electric Mountain Bike - Blue/Orange LRG

Forme Curbar HTE Pro 27.5'' Electric Mountain Bike

Features:

• Frame Size: S: 41cm, M: 46cm, L: 50cm
• Frame: 6061 Alloy with In Tube Battery
• Fork: SR Suntour XCM 100mm Lock-Out
• Shifters: Shimano Acera 9 Speed
• Rear Derailleurs: Shimano Acera 9 Speed
• Chainset: Bafang Alloy 170mm
• Cassette: Shimano HG200 11-34T
• Chain: KMC Z9 9 Speed
• Bottom Bracket: FSA ISIS
• Kick Stand: Black Alloy
• Motor: Bafang M420 Mid Motor
• Display: Bafang LCD
• Brakes: Shimano MT200 180mm Rotors
• Handlebars: Signum Alloy 31.8mm x 760mm
• Headset: FSA Integrated Cage Bearing
• Grips: Signum Lock-On
• Stem: Signum 31.8mm x 60mm
• Saddle: Signum Comfort
• Seatpost: Signum Alloy 30.9mm
• Pedals: Platform Black Alloy
• Wheelset: Signum Alloy 27.5" 32h Disc Quick Release
• Tyres: CST Rock Hawk 27.5" x 2.25"
• Battery: Bafang Integrated 500wh
• Max Speed: 15mph
• Max Range: 60 miles

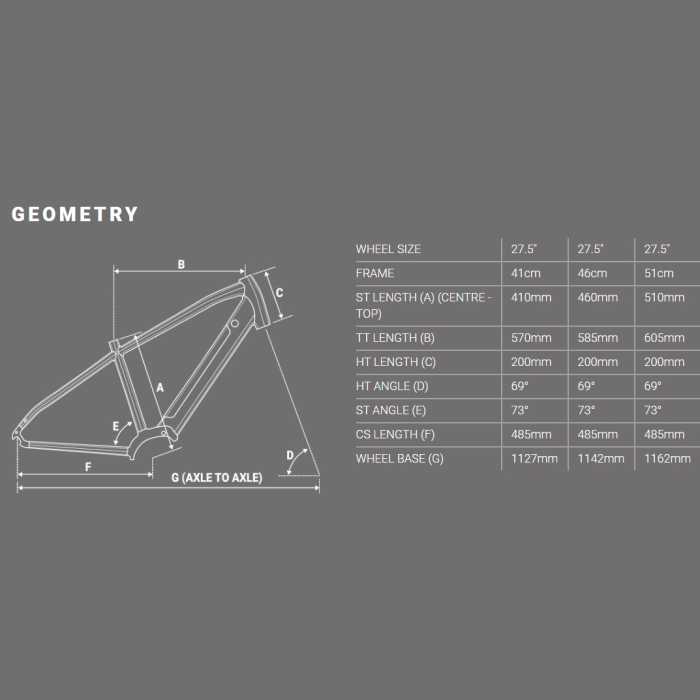

Geometry:

• See Images

Forme's Curbar range has always been your entry into mountain biking and now with the assistance of Bafang motors the Curbar PRO will encourage you to branch into new types of cycling that previously may have felt intimidating.

The Curbar HTE Pro has a hydroformed alloy frame equipped with SR Suntour XCM forks. It is driven by a Shimano Acera 9 speed drive train, rolls on Signum wheels and CST Rock Hawk tyres. All powered by a Bafang M420 mid motor and in tube 500wh battery.
