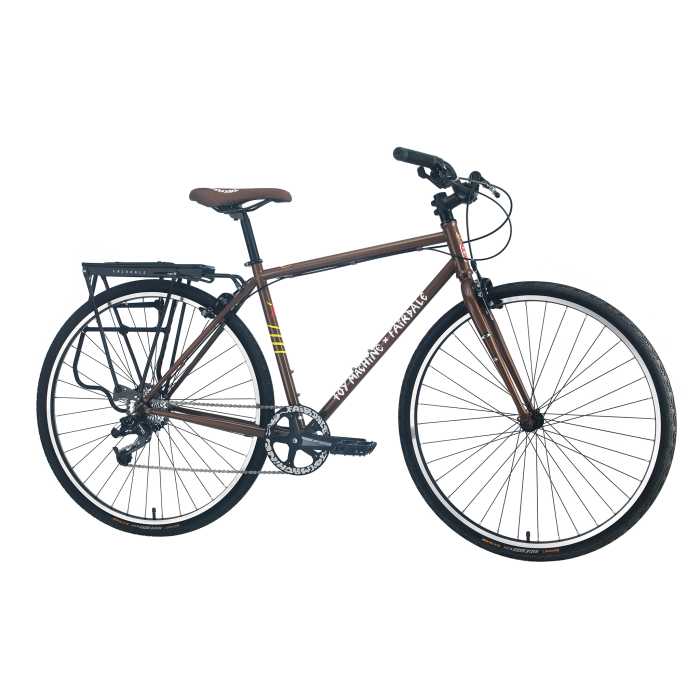

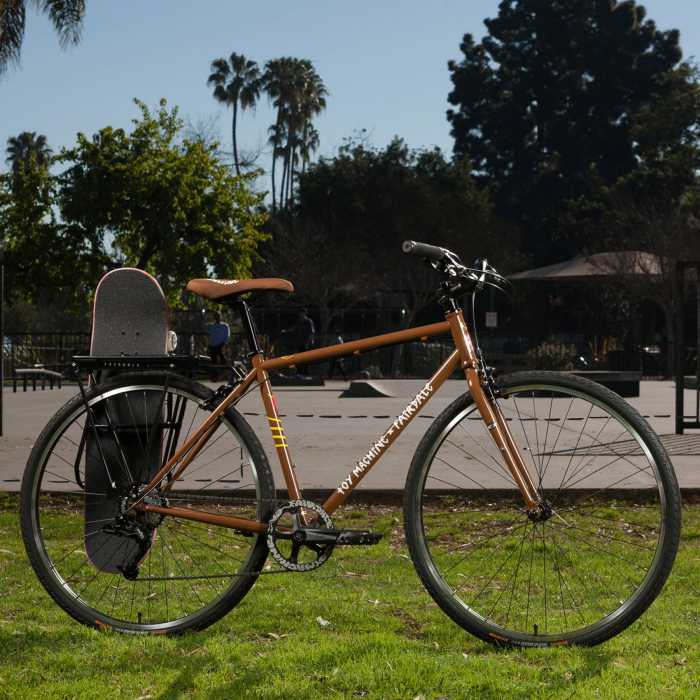

Fairdale x Toy Machine Lookfar Road Bike - Gloss Brown

Features

Specification

• Height Recommendation: 5'7" - 5'10" Height
• Frame: 1020 Steel, with Rack and Fender mounts
• Fork: 1020 Steel, 1 1/8”
• Handlebar: Fairdale Archer v3, Aluminum
• Stem: 70mm, Forged Aluminum
• Headset: FSA, Sealed Integrated, 45º/45º
• Brake Lever: Aluminum, Short Pull
• Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
• Grips: Fairdale Swan

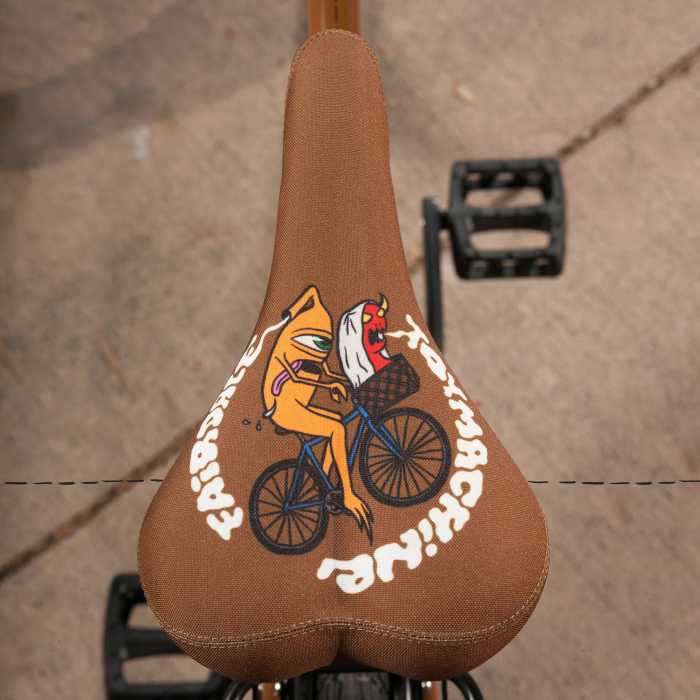

• Saddle: Fairdale
• Seat Post: Micro adjust, 27.2mm
• Seat Clamp: Fairdale, 30mm

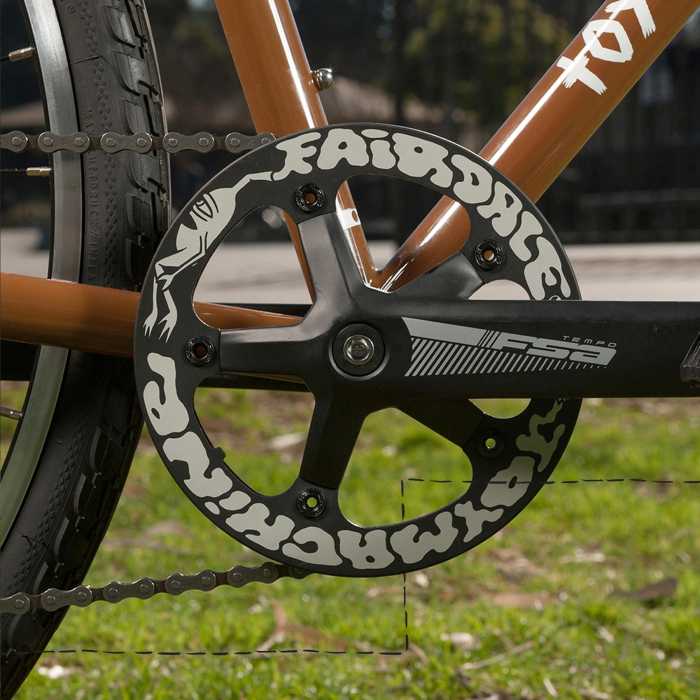

• Cranks: FSA Tempo 1X 170mm
• Chainwheel: 42t
• BB Parts: FSA
• Pedals: Odyssey Twisted PC
• Rims: 700c, 36-Hole, Schrader Valve, Aluminum
• Front Hub: 36H, 3/8” Axle, Aluminum Shell, Looseball
• Rear Hub: 36H, 3/8” Axle, 7-Speed, Aluminum Shell, Looseball
• Tires: Continental Tour Ride, 29" x 42mm
• Chain: KMC Z8.1, 8-Speed
• Driver: 8-Speed, 13-34t
• R. Shift Lever: SRAM X4 Trigger, 8-Speed
• *R. Shift Lever Alternate: Microshift TS39-8R, 8-Speed
• R. Derailleur: SRAM X4, Mid-cage, 8-Speed
• *R. Derailleur Alternate: Microshift RD-M26CS, 8-Speed
• Shift Cable: Fairdale

Geometry

• Top Tube (Effective): 552mm
• Top Tube (Actual): 531mm
• Seat Tube (BB Center to TT Top): 490mm
• Seat Tube (BB Center to TT Center): 448mm
• Seat Tube Angle: 73°
• Head Tube Length: 140mm
• Head Tube Angle: 71°
• Chain Stay Length: 440mm
• Wheelbase: 1038mm
• Standover: 780mm
• Stack: 564mm
• Reach: 379mm
• Fork Length: 401mm
• Fork Offset: 50mm
• BB Drop: 68mm
• Dropout Spacing: 135mm
• BB Type: English 68
• Seat Post: 27.2mm
• Seat Clamp: 30mm
• Approx. Max Tire Width: 42mm
• Wheel Size: 700c

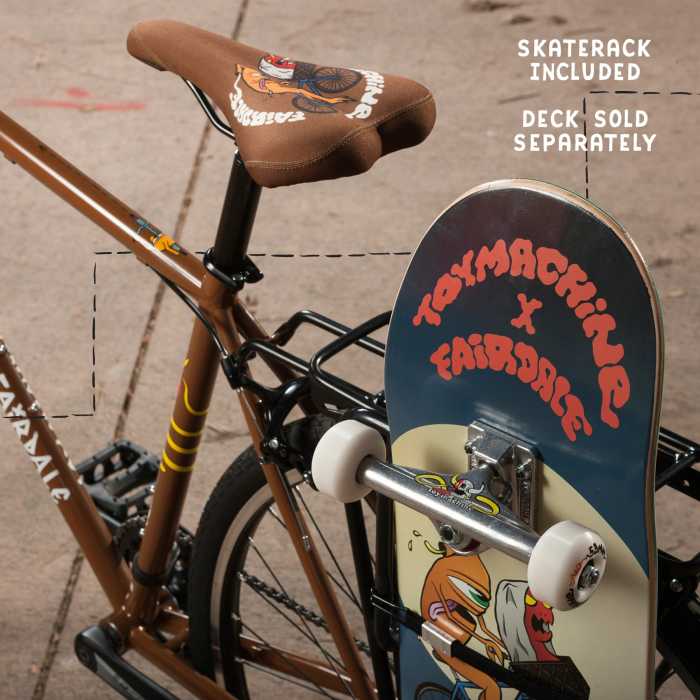

Fairdale worked with Toy Machine to create this special limited-edition bike. A brainwashing Brown Lookfar (with the Skaterack assembly included) featuring custom Toy Machine art by Ed Templeton throughout, and you know they had to do a special skate deck with them (sold separately)."

The Fairdale Lookfar makes cruising and commuting easy. One simple trigger shifter changes the gears up-or-down through all 8-speeds. The bike’s 42mm wide Continental tyres feel fast on smooth ground while still confidently handling rough terrain.

The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. Fairdale also chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.

The Lookfar shares the same proven geometry as the ever-popular Fairdale Weekender model.
